DM 50 Asphalt Drum Mixing Plant

We’re here to assist you with any inquiries or feedback regarding our products. Whether you need more information about the specifications, pricing, availability, or features of our products, or if you have a specific question related to an order or service, our dedicated team is ready to help.
Optimal Performance for Large-Scale Road Construction
The DM 50 Asphalt Drum Mixing Plant is a high-performance, continuous asphalt production plant designed for large-scale road construction and maintenance projects. Specifically engineered for both efficiency and quality, this plant is ideal for producing hot mix asphalt with consistent quality and optimal performance. As a Quality Engineer, understanding the key features and operational nuances of the DM 50 will ensure that quality standards are met throughout the production process.
The DM 50 Asphalt Drum Mixing Plant stands as a robust, reliable, and efficient solution for large-scale asphalt production, ideal for construction projects where high-quality asphalt is critical. Its advanced features, such as continuous drum mixing, precise material handling, real-time control systems, and pollution management, make it an excellent choice for quality engineers committed to ensuring the production of top-grade asphalt. By employing this plant, engineers can confidently oversee the entire production process, from raw material handling to final output, ensuring consistency, quality, and compliance with industry standards and project specifications.
Features of DM 50 Asphalt Drum Mixing Plant
- Continuous Drum Mixing Technology
- High Production Capacity
- Precise Aggregate Feeding System
- Automated Control System
- Durable and Low-Maintenance Design
Applications of DM 50 Asphalt Drum Mixing Plant
- Highway and Expressway Construction
- Urban and Rural Road Development
- Airport Runways and Taxiways Construction
- Heavy Traffic Road Construction
Make Of Bought Out Items
- Motors: - Crompton or Havells Make.
- Dryer & Bitumen Tank Burner: - Burner India Make.
- V - Belts: - Fenner Make.
- Conveyor Belt: - Dunlop or MRF Make.
- Gear Box : - Alcon or Robox Make.
- A.C. Drives: - Delta or Korea Equivalent.
- Control Contactors: - SIEMENS or SCHNIEDER Make.
- Bitumen Pump: - Alcon or Prakash Make.

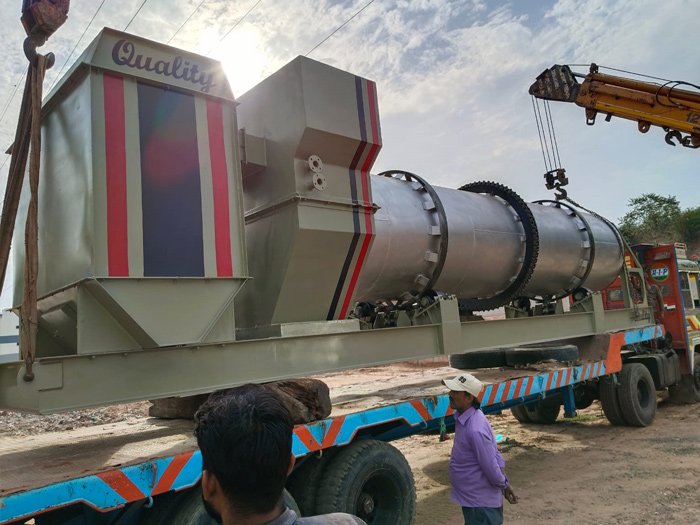

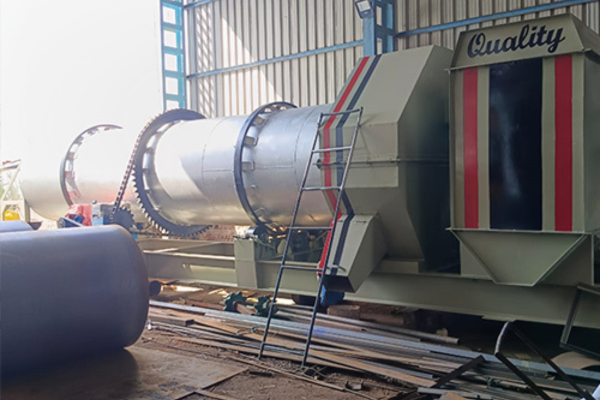

Drying Cum Mixture Unit :-
Insulated Dryer Cum Mixing Drum (Thermo Drum) Fitted With Pressure Jet Electronically Fired Oil Burner. The Drum Is Driven By Chain Drive Arrangement Cradle Type.
- Drying Cum Mixing Unit Having Shell Thickness - 10 MM
- Thermo Drum Diameter - 1520 MM
- Thermo Drum Length – 6800 MM
- Thermo Drum Drive Type - Chain Drive.
- Drier Drum Motor - 30 HP X 1 Nos.
- Multi Cone Primary Dust Collector: Cones - 19 Nos.
- Dust Output - By Motorized Worm Screw.
- Dust Collector Screw Motor - 2 HP X 1400 RPM.
- BURNER - Pressure Jet Electronically Fired Oil Burner.
- Burner Blower - 15 HP X 2800 RPM.
Burner Pumping Station:-
- Motor- 2 HP X 1 Nos.
- Pump- 1000 LPH X 1 Nos.
Cold Aggregate Feeder Bins (Four Bin Feeder ) :-
Cold Aggregates Feeder Bin – 2 Nos.
- Cold Aggregates Feeder Bins - 4 Nos.
- 1 Nos. Gathering Conveyor With
- A.C. Variable Frequency Inverter Based Variable Speed Drives On Each Bin.
- Total Storage Capacity 60 Ton. (Each Bin 15 Ton).
- Bin Auxiliary Conveyor Belt Drive Motor - 2 HP X 4 Nos.
- Bin Auxiliary Conveyor Belt Size - 450 MM Width X 2.5 MTR X 3 Ply Bin
- Auxiliary Conveyor Gear Box - SMSR C 20 : 1
- Gathering Conveyor Belt Size - 600 MM X 21 MTR X 3 Ply.
- Gathering Conveyor Drive Motor - 5 HP X 1400 RPM.
- Gathering Conveyor Gear Box - SMSR D 20 : 1
- Bin Vibrator Motor - 1 HP X 1440 RPM.

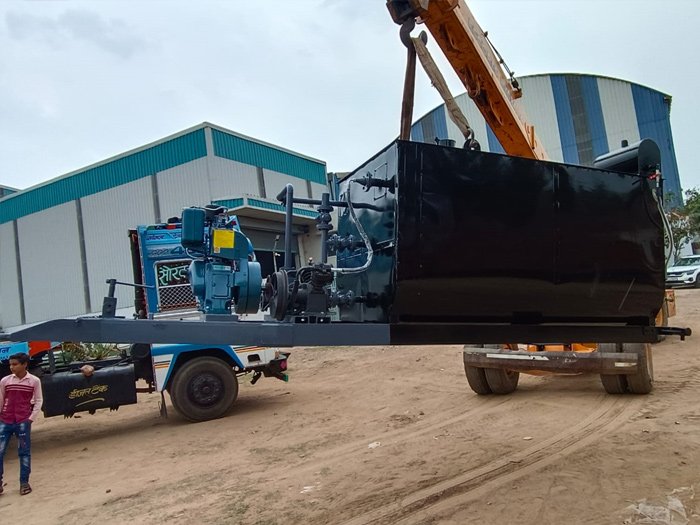

Asphalt (Bitumen) Storage Tank:-
Fully Insulated Bitumen Tank Fitted With Variable Speed A.C. Motor, Pumping Station And Automatic Control Pressure Jet Oil Burner With Thermostatic Temperature Controller For Asphalt Pump And Pipe Line.
Tank Capacity (Insulated) – 22 Ton.:-
- Bitumen Pump Drive Motor- 5 HP x 1400 RPM.
- Heating System- Direct Heating
- Bitumen Storage Tank Shape “U” Type.
- Heating Coil pipe diameter – 200 MM
Mineral Filler Unit: -
AC Drive Complete With Gear Box And Blower For Lime/Cement/Dust.
- Drive Motor – 2 HP x 1400 RPM.
- Blower- 3 HP x 2800 RPM.
Slinger Conveyor For Feeding Cold Aggregate Into Dryer Drum:-
Cold Aggregates Feeder Bin – 2 Nos.
- Conveyor Drive Motor - 5 HP X 1440 RPM.
- Conveyor Gear Box - SMSR D 5 : 1
- Conveyor Belt Size - 500 MM X 3 Ply.
- Conveyor Inclination 14 - 15 Degrees.
Load Out Conveyor Fitted With Gob Hoper & Hydraulic Power Pack :-
- Conveyor Belt Size - 500 MM X 17900 MM X 3 Ply.
- Conveyor Drive Motor - 5 HP X 1400 RPM.
- Conveyor Drive Gear Box - SMSR D 13 : 1
- Gob Hoper Capacity: 1200 KG.
- Hydraulic Power Pack Motor - 3 HP.
- Conveyor Inclination 22 - 23 Degree.
pollution control unit:-
Wet Scrubber Type Pollution Control Unit With High Efficiency Ventury, Exhaust Blower, Water Pump & Chimney.
- Water Pump – 3 HP X 2800 RPM.
- Water Spraying Nozzle - 4 Nos.
Fuel Tank :-
- Capacity – 5,000 LTR.
control panel board with cabin:-
(Can Be Operated In Auto/Semi/Auto/Manual Mode) Automatic Control Panel, With All AC Drive With Synchronization And Master Controls, Burner Controls.
